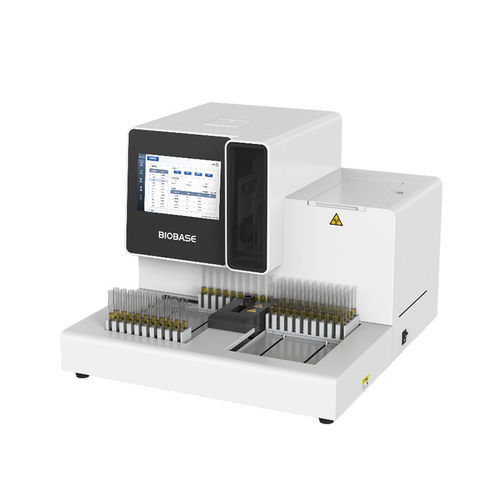

Automatisches Urin-Analysegerät BH-QNY01

Tischmit TouchscreenBarcode-Leser

Introduction:The urine analyzer is an automatic instrument for determining specific chemical components in urine. It is an important tool for automated urine examination in the medical laboratory. It offers the advantages of simple and fast operation. Computer-controlled, the device collects and analyzes the color information of various reagent blocks on the test strip and converts a series of signals to output the chemical composition content of the urine.Features:Integrated 10.1-inch touchscreen, built-in thermal printer.Sample feeding, injection, droplet formation, analysis, and report output are performed automatically by the device.A high-precision sample dispenser is used to ensure thorough reaction and improve the accuracy of test results.Automatic strip selection chamber that can hold 600 test strips at once.Supports closed puncture analysis, significantly improving biosafety.Technical Parameters:ModelBH-QNY01BH-QNY02Cascade functionNoYesPrinciplePhotoelectric colorimetryThroughput240 tests/hourScreen10.1-inch touchscreenMemoryCan store more than 1,000,000 test reportsPrinterBuilt-in thermal printerInterfaceUSB, RS232, network interfaceBarcode scannerOptionalApplication range9, 10, 11, 14 test stripsItems9 test strips: GLU, BIL, KET, pH, BLD, PRO, URO, NIT, LEU10 test strips: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU11 test strips: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU, VC14 test strips: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU, VC, CRE, CAL, MCASample rack capacity100 samples (10 reagent tube racks)Reagent tank capacity600 piecesData retrievalCan be searched by current date, date range, urine sample number, name, barcode, etc.Automatic detectionAutomatic detection and analysis after sample insertionCalibration functionYesPower130 WPower supplyAC100~240V, 50/60HzExternal dimensions (W*D*H)662*730*520 mm662*780*520 mmNet weight48 kg51.5 kgPacking size (W*D*H)805*880*600 mm;430*340*590 mm805*880*600 mm;430*340*590 mmGross weight76.5 kg; 15 kg80 kg; 15 kgNote: The device comes standard with 100 test strips.Brand: BIOBASEProduct origin: CHINADelivery time: Within 7 daysSupply capacity: Direct factory deliveryTechnical Specifications / Features:Model: BH-QNY01, BH-QNY02Integrated 10.1-inch touchscreenBuilt-in thermal printerAutomatic sample handling and analysisHigh-precision sample dispenserAutomatic strip selection chamber (600 strips)Closed puncture analysis supportedThroughput: 240 tests/hourMemory: >1,000,000 test reportsInterfaces: USB, RS232, networkOptional barcode scannerSupports 9, 10, 11, 14 parameter test stripsSample rack: 100 samplesReagent tank: 600 piecesAutomatic detection and calibrationPower: 130 W, AC100~240V, 50/60HzDimensions: 662*730*520 mm / 662*780*520 mmNet weight: 48 kg / 51.5 kgPacking size: 805*880*600 mm; 430*340*590 mmGross weight: 76.5 kg; 15 kg / 80 kg; 15 kg
