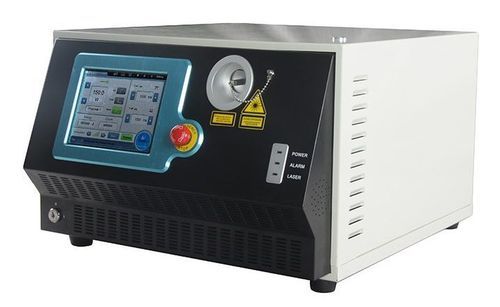

Laser für urologische Chirurgie HPLASⅡ

GaAlAsDiodenTischgerät

Overview
GIGAALASER combines two parallel working wavelengths of 980nm and 1470nm to create the HPLASⅡ urology diode laser system. The dual wavelengths operate in parallel with a combined maximum output (system delivering high ablation rate and strong hemostatic effect). The design targets optimal absorption in both water and hemoglobin to enable efficient tissue ablation with excellent blood-staunching and minimal internal tissue damage.

Clinical benefits
The dual-laser approach enables effective ablation with a favorable hemostatic profile, resulting in virtually no blood loss during and after the procedure and a positive impact on healing. The dual laser method aims to spare internal structures related to ejaculation, reducing the risk of retrograde ejaculation for selected patients.

Advantages

• Dual parallel working wavelengths of 980nm and 1470nm
• New BPH probe with bare fibers contacting tissue at the treatment site to achieve high degree of ablation
• Optional side-fire fiber
• 12-inch color touch screen with user-friendly interface

Principle of treatment
Treatment begins by inserting a cystoscope containing the BPH probe through the urethra. The head of the bare fiber is extended from the probe and the dual lasers (980nm and 1470nm) are emitted from the probe head. The operator steers and rotates the probe to ablate tissue in a circular motion; the treated funnel gradually enlarges and the probe is withdrawn when the procedure is complete, restoring normal urine flow.

Visual / multimedia
Video content demonstrating related fiber/procedure is embedded on the product page and shows a TURP hook shot fiber demonstration.

caractéristiques / spécifications techniques

• Laser Type: GaAlAs Diode Laser
• Model: HPLAS
• Wavelength: 980nm + 1470nm
• Maximum Power: 150W + 40W (dual wavelengths)
• Operation Mode: Continuous and pulsed
• Pulse Duration: 100ms - 1s
• Repetition Rate: 0.5Hz - 50Hz
• Transmission System: 600μm ~ 1000μm side-fire fiber or bare fiber with SMA 905 connector available, no limit
• Pilot Beam: Red diode laser 635nm, Power < 5mW
• Control Mode: True Color Touch Screen (12-inch)
• Voltage/Current Rating: 110/220 VAC, 5A, 50/60 Hz
• Dimensions: 545(W) * 540(L) * 300(H) mm
• Weight: 38 Kg
• Safety Compliance: IEC
• Note: Specifications subject to change without notice.
