Rotationsviskosimeter CBC ROTAVISC lo-vi Package

Labor

Overview

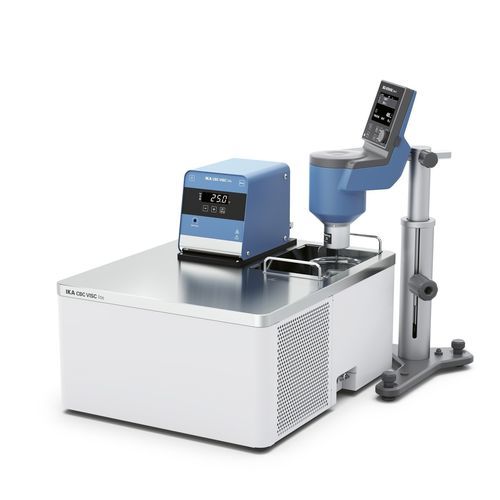

The viscosity of most liquids depends on the temperature. To obtain reliable measurement results, accurate temperature control is crucial. The CBC ROTAVISC lo-vi Package is a ready-to-connect solution for precise viscosity measurement of temperature-dependent samples in the laboratory. The package combines the ROTAVISC lo-vi rotational viscometer with the CBC VISC lite heating and cooling bath circulator, allowing the sample to be measured directly in the heated/cooled bath under controlled conditions.

Key product details
ROTAVISC lo-vi is a high-performance rotational viscometer with a measuring range from 1 - 6,000,000 mPas. The CBC VISC lite heating and cooling bath circulator was specially developed for use with IKA viscometers and covers a temperature range from -25 °C to 125 °C. The bath offers space for two standard beakers (600 ml) so a second sample can be pre-tempered during a measurement. The CBC VISC lite is equipped with the natural refrigerant R290 for improved environmental performance.

Your benefits

• Save time: A second beaker (600 ml) can be pre-tempered during the measurement.
• Perfect results: Optimized water flow management in the insulated bath for fast and precise temperature control.
• Improved ecological footprint: Equipped with the environmentally friendly natural refrigerant R290.
• Flexible application: External pump connection enables use for heating standard vessels according to DIN for absolute viscosity definition with ELVAS spindles or double-walled beakers.
• Easy to maintain: Easily removable and cleanable air filter ensures optimum performance.
• Perfect compatibility and automation: ROTAVISC and CBC VISC lite are compatible with labworldsoft® laboratory software for automation, control and documentation of measurement results.

Scope of delivery

• ROTAVISC lo-vi control S000
• ROTASTAND
• CBC VISC lite
• SP set-1
• PT 100.8

Caractéristiques / spécifications techniques

• Measuring range (ROTAVISC lo-vi): 1 - 6,000,000 mPas
• Temperature range (CBC VISC lite): -25 °C to 125 °C
• Bath capacity: space for two standard beakers (600 ml)
• Supports pre-tempering of a second sample during measurement
• Refrigerant: natural refrigerant R290
• Specially developed for use with IKA viscometers; optimized water flow management in insulated bath
• External pump connection for heating standard vessels according to DIN (ELVAS spindles or double-walled beakers)
• Removable and cleanable air filter
• Software compatibility: labworldsoft® (automation, control, documentation)
• Ident. No. / SKU: 0010014045
