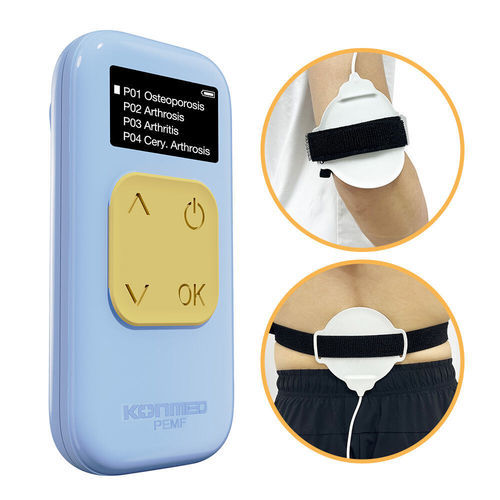

Magnetfeld-Therapieeinheit mit extrem niedriger Frequenz / für Entzündungen KM330A

VerstauchungenMuskelregenerationGelenkschmerzen

Description
KM330A is particularly recommended for the treatment and care of osteoporosis and all pathologies borne by bone tissues. Thanks to the high intensity of the magnetic field that can generate, KM330A is particularly indicated in the treatment of bone fractures even in the presence of rigid bandages or plaster.

What is magnetotherapy
Magnetotherapy is a form of physiotherapy that uses electromagnetic energy to stimulate the regeneration of biologic tissues. Magnetotherapy is a physical therapy based on low-frequency and low-intensity Pulsed Electro Magnetic Fields (PEMFs). It avails itself of the action of a magnetic field generated by the electric current that goes through a coil (solenoid). The solenoid is composed of a metal conductor wrapped in a series of coils. The direction of the current determines a polarity, so each coil will have a North and a South pole.

The patient population intended for magnetotherapy treatment using the KM330A device includes patients of both sexes, men and women, of age (unless otherwise indicated by medical doctors).

Indications (pathologies)

• wrist, hand, shoulder, foot, ankle and knee articulation
• skeletal motor apparatus
• arthrosis
• atrophies and muscular dystrophy
• bursitis
• bruises
• degeneration of locomotor apparatus
• sprains
• periarthritis
• benign lesions and muscular tears
• tendinitis

SPECIFICATIONS
Power supply: DC 3.7V/ 900mAh rechargeable lithium battery
Charging port voltage: DC 5V, 0.5A
Safety Category: BF type
Number of channels: 1
Display: 1.77 OLED screen
Field strength: 0-30GS(±30%)
Square wave frequency: 5-75Hz
Duty cycle: 80%
Timer: 30-180 minute countdown timers.
Service life: 5 years
Environment for Operation: Temperature:5℃~40℃; Humidity:≤80%RH; Atmospheric pressure: 70~106kPa
Environment for Transportation & Storage: Temperature: -10℃~+55℃; Humidity: ≤90%RH; Atmospheric pressure: 50~106kPa

Package Content

• 1 PEMF device
• 1 universal flexible applicator
• 2 elastic bands (S and L size)
• 1 test emissions magnet
• 1 Charging wire（Type-C plug）
• 1 User Manual

List of Modes
P01: L program
P02: H program
P03: Osteoporosis
P04: Arthrosis
P05: Arthritis
P06: Cerv. Arthrosis
P07: Articular Pain
P08: Cervicalgias
P09: Sprains
P10: Fractures
P11: Epicondylitis
P12: Epitrocleitis
P13: Intercost. Con.
P14: Lumbalgy
P15: Lumbar Pain
P16: Shoulder Art.
P17: Knee Arthrosis
P18: Periarthritis
P19: Coxarthrosis
P20: Musc. Atrophy
P21: Musc. Contract.
P22: Osteonecrosis

Caractéristiques / spécifications techniques

• Power supply: DC 3.7V / 900mAh rechargeable lithium battery
• Charging port: DC 5V, 0.5A (Type-C)
• Safety category: BF type
• Channels: 1
• Display: 1.77" OLED
• Field strength: 0–30 GS (±30%)
• Square wave frequency range: 5–75 Hz
• Duty cycle: 80%
• Timer range: 30–180 minutes
• Service life: 5 years
• Operating temperature: 5℃–40℃; Humidity ≤80%RH; Pressure 70–106 kPa
• Storage/transport temperature: -10℃–+55℃; Humidity ≤90%RH; Pressure 50–106 kPa
