Bodenstehende Faltmaschine für Laken KS-F series

mit Stapelsystem

Overview
Automatic feeders, folders and stackers that remove the manual handling at the end of the line, where most plants lose their throughput.

Key features

• Automatic feeding
• Cross and lateral folding
• Single or double stacking
• Integrates with KS-FI ironers

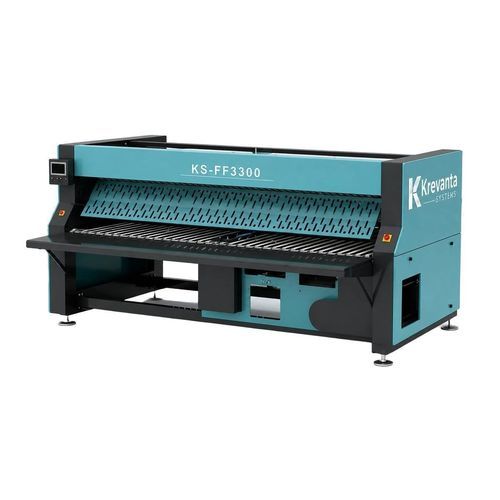

KS-FF3300 Flatwork Folding Machine

• High-performance automated flatwork folding system engineered for high-volume commercial and industrial laundry operations
• Designed to automate folding of bed sheets, duvet covers, pillowcases, table linen and other flatwork textiles
• Four independent folding channels, up to five folding layers
• Variable conveyor speed; PLC-controlled folding system; frequency-controlled drive motors; pneumatic folding mechanism
• Compatible with optional KS-FFA1 or KS-FFA2 stackers to provide fully automated folding, stacking and sorting
• Applications: hospital laundries, hotel/resort laundries, commercial laundry plants, textile rental, linen processing facilities
• Key specifications: working width 3,300 mm; maximum linen size 3300–4500 mm; conveyor speed 10–60 m/min; main motor 1.5 kW / 4P; drive motors 1 × 0.75 kW / 4P + 1 × 0.55 kW / 4P; main motor inverter 1 × 1.5 kW; drive motor inverters 2 × 0.8 kW; total power input 3.1 kW; voltage 3-phase AC 380 V / 50 Hz; air inlet DN10; air pressure 0.6 MPa; air consumption 400 L/h; machine dimensions L × W × H 4500 × 2950 × 1800 mm; machine weight 2,450 kg

KS-FFA1 Automatic Single Stacker

• Optional stacking module designed for integration with KS-FF3300
• Automatically stacks folded linen to eliminate manual handling
• PLC-controlled operation; pneumatic stacking mechanism; industrial-grade construction
• Applications: hospital laundries, hotel/resort laundries, commercial laundry plants, textile rental, linen processing facilities
• Key specifications: stacking quantity 0–5 pieces; main motor power 1 × 0.4 kW / 4P; total machine input 0.4 kW; voltage 3-phase AC 380 V / 50 Hz; air inlet DN10; air pressure 0.6 MPa; air consumption 50 L/h; machine dimensions L × W × H 3450 × 850 × 900 mm; machine weight 280 kg

KS-FFA2 Automatic Double Stacker

• Advanced stacking and sorting module for integration with KS-FF3300
• Dual stacking stations for automatic stacking and sorting of folded linen
• PLC-controlled operation; pneumatic stacking mechanism; industrial-grade construction for continuous heavy-duty operation
• Applications: hospital laundries, hotel/resort laundries, commercial laundry plants, textile rental, linen processing facilities
• Key specifications: stacking quantity 0–5 pieces; main motor power 2 × 0.4 kW / 4P; total machine input 0.8 kW; voltage 3-phase AC 380 V / 50 Hz; air inlet DN10; air pressure 0.6 MPa; air consumption 100 L/h; machine dimensions L × W × H 3450 × 1600 × 900 mm; machine weight 530 kg

KS-FM3300 Automatic Feeding Machine

• High-performance flatwork feeding system to spread, align and feed bed sheets, duvet covers, pillowcases, table linen and other flatwork textiles into industrial ironers
• Vacuum-assisted linen feeding; perforated wool conveyor belt; variable feeding speed control; LED inspection lighting; efficient air suction system
• Designed for high-volume commercial laundries to improve productivity, ironing quality and operator efficiency
• Applications: hospital laundries, hotel/resort laundries, commercial laundry plants, textile rental, linen processing centres
• Key specifications: maximum feeding width 3300 mm; feeding speed 10–50 m/min; feeding motor power 0.37 kW; drive motor power 0.75 kW; fan motor power 7.1 kW; power supply 380 V / 3 phase / 50 Hz; machine dimensions L × W × H 4450 × 1200 × 1550 mm; machine weight 1,200 kg

Comparison — Folding & Finishing at a glance (Model | Capacity | Speed | Connected load)
KS-FF3300 | 3,300 mm | 10–60 m/min | 3.1 kW
KS-FFA1 | 0–5 Pieces | Not applicable | 1 × 0.4 kW / 4P
KS-FFA2 | 0–5 Pieces | Not applicable | 2 × 0.4 kW / 4P
KS-FM3300 | 3300 mm | 10–50 m/min | 8.2 kW (3 motors)

Caractéristiques / spécifications techniques

• Product family: KS-FF, KS-FFA and KS-FM series
• Main functions: automatic feeding, cross and lateral folding, single/double stacking, integration with flatwork ironers
• Control: PLC-controlled folding/stacking systems; frequency-controlled drive motors
• Drive & power: models use 3-phase AC 380 V / 50 Hz supply; total connected loads vary by model (examples: KS-FF3300 3.1 kW; KS-FM3300 8.2 kW)
• Pneumatics: air inlet DN10, typical operating pressure 0.6 MPa, air consumption varies by model
• Typical applications: hospitals & healthcare, hotels & hospitality, commercial laundry plants, textile rental and linen processing facilities
