Video-Pharingoskop / für Kinder USB NasoFlex

hochauflösendWeitwinkelmit Arbeitskanal

Product name

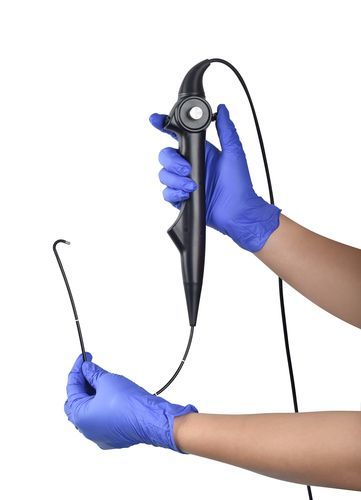

Rhino-Laryngo-Pharyngo-Videoscope, flexible, with USB-connection (also marketed as USB NasoFlex — Flexible Video Naso-Pharyngo-Laryngoscope with direct USB connection).

Key clinical advantages

• USB Plug & Play — direct connection to PC, laptop, tablet or smartphone (UVC standard), no external video processor or proprietary driver/software required.
• HD video imaging — integrated CMOS chip with a resolution of 1,280 × 800 pixels and integrated LED illumination for uniform lighting.
• Slim outer diameters available — from ø 2.80 mm (patient-friendly, suitable for narrow anatomy). Three main sizes available.
• Wide field of view and strong deflection — field of view 120°, depth of field 3–200 mm, deflection U 130° / D 130° for visualization from nasopharynx to larynx.

Clinical applications

• Sinuscopy — assessment of nasal cavity, mucosa and turbinates
• Nasopharyngoscopy — visualisation of epipharynx, adenoids and tubal openings
• Laryngoscopy — assessment of vocal cords, glottis and hypopharynx
• Stroboscopy — diagnosis of voice disorders and vocal cord pathologies
• FEES (Fiberoptic Endoscopic Evaluation of Swallowing) — use in speech therapy and swallowing rehabilitation
• Paediatrics & Phoniatrics — slim diameters ideal for children and narrow anatomy

Semi-disposable / Reprocessing options
OPTEC offers a semi-disposable variant OC 600235 for hygiene-sensitive applications (limited reuse, designed for simplified hygiene). Standard models OC 600128, OC 600130 and OC 600140 are fully reprocessable and resistant to disinfectants. All models comply with EU Medical Device Regulation (MDR 2017/745) and are CE-certified.

Seamless practice integration

• USB Video Class (UVC) standard — driver-free, compatible with common practice documentation software.
• Operating systems supported: Windows and macOS (driver-free)
• Direct integration into existing documentation workflows; optional OPTEC documentation software available.
• Compact and mobile — single device solution: no separate camera head, no light guide cable, no external processor.

Model overview (table)
Parameter: OC 600128 | OC 600130 | OC 600140 | OC 600235
Outer Diameter: ø 2,80 mm | ø 3,00 mm | ø 4,00 mm | ø 3,50 mm
Working Length: 350 mm | 350 mm | 350 mm | 350 mm
Deflection: U 130° / D 130° | U 130° / D 130° | U 130° / D 130° | U 130° / D 130°
Field of View: 120° | 120° | 120° | 120°
Depth of Field: 3–200 mm | 3–200 mm | 3–200 mm | 3–200 mm
Working Channel: — | — | ø 2.0 mm | —
Reprocessing: Unlimited | Unlimited | Unlimited | 10 times reuse (semi-disposable)

Technical specifications (summary)
Imaging: integrated CMOS chip, 1,280 × 800 pixels
Illumination: integrated LED light source
Field of View: 120°
Depth of Field: 3–200 mm
Deflection: U 130° / D 130°
Connection: USB (UVC standard, driver-free)
Compatibility: PC, laptop, tablet, smartphone; Windows / macOS
Outer diameters: ø 2.80 mm (OC 600128), ø 3.00 mm (OC 600130), ø 4.00 mm (OC 600140)
Working length: 350 mm (all models)
Working channel: ø 2.0 mm (OC 600140 only)
Reprocessing: fully reprocessable (OC 600128 / 130 / 140); semi-disposable OC 600235 (limited reuse).
