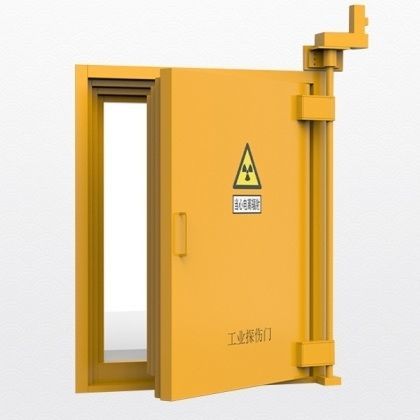

Strahlenschutztür

mit AbschirmungRöntgenhermetisch dicht

Product Introduction
The shielding design should fully consider the direction and range of exposure to the useful radiation beam, the operational load of the device, and outdoor conditions. The walls in the direction of the useful beam projection should be designed according to the primary shielding requirements, while those in other directions should be designed according to the requirements for leakage and scattered radiation shielding.

Product Performance

• The door surface can be treated with sandblasting and fluorocarbon coating, and the motor shall meet the IP54 dustproof and waterproof rating.
• Door Integrity: The shielding materials shall be continuous and intact. The lead sheet inside the door body shall be tightly fitted to the frame to prevent radiation leakage caused by looseness or gaps.
• Process: 30mm Pb + 120mm boron-containing polyethylene paraffin.
• Material: Door panel: 1.0 mm thick; Door body: 10 mm Q235 steel plate.
• Motor: Adopts a brand-name motor, equipped with high-load-bearing rails and cover plates.
• Protection: Equipped with a special anti-fingerprint mirror finish belt for radiation protection.
• Color: 304 anti-fingerprint stainless steel or AkzoNobel electrostatic spraying sheet.
• Frame Requirement: The frame is supported by No.24 channel steel.

Technical Parameters
Technical parameter details and diagrams are provided on the product page (illustrations included on the original page).

Application Fields

• Department of Radiology：Comprehensive department integrating imaging diagnosis and interventional therapy. Radiological diagnosis employs X-rays, gamma rays and other radiation to penetrate the human body, rendering images of internal bodily structures and organs for evaluation of anatomical morphology, physiological functions and pathological lesions.
• Department of Radiation Oncology：Localized therapeutic modality that uses ionizing radiation for cancer treatment. Radiation sources include alpha, beta and gamma rays from radioactive isotopes, as well as X-rays, electron beams, proton beams and other particle beams generated by therapy units and medical accelerators.
• Department of Nuclear Medicine：Adopts nuclear science technologies for disease diagnosis and treatment; integrates imaging, therapeutic services, scientific research and teaching as a core modality in modern medicine.

Caractéristiques / spécifications techniques

• Shielding process composition: 30 mm lead (Pb) plus 120 mm boron-containing polyethylene paraffin.
• Door panel thickness: 1.0 mm.
• Door body material: 10 mm Q235 steel plate.
• Surface treatment: sandblasting and fluorocarbon coating (optional 304 anti-fingerprint stainless steel or AkzoNobel electrostatic spraying sheet finish).
• Motor rating: meets IP54 dustproof and waterproof standard; uses brand-name motor with high-load-bearing rails and cover plates.
• Leakage prevention: lead sheet fitted tightly to frame to ensure continuous and intact shielding.
• Protection features: special anti-fingerprint mirror finish belt.
• Frame support: No.24 channel steel.
