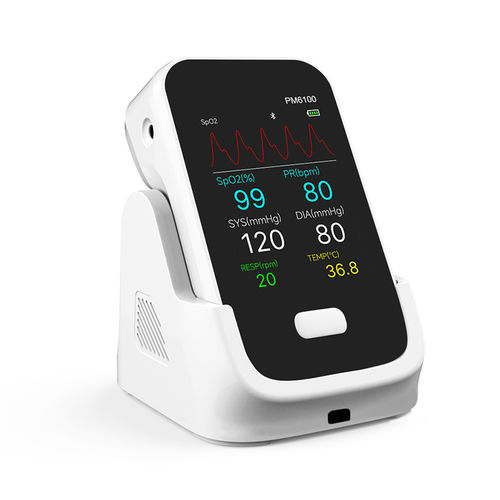

Tragbarer Multiparameter-Monitor PM6100

kompaktHandgerätEKG

Overview
PM6100 is a multi-functional, non-invasive, portable patient monitor with a color TFT-LCD display and rechargeable battery. It features a compact structure, small size, light weight, flexible operation and is suitable for outpatient clinics, hospital wards, rehabilitation and healthcare institutions, and home care.

Measured parameters

• Electrocardiogram (ECG)
• Non-invasive blood pressure (NIBP)
• Oxygen saturation (SpO2)
• Pulse rate (PR)
• Respiratory rate (RESP)
• Temperature (TEMP)

Operation and signal acquisition
The monitor acquires physiological signals via an integrated ECG–temperature lead cable, blood pressure cuff and tubing, and an SpO2 sensor. Signals are processed and displayed as numerical values and waveforms on the TFT-LCD screen. The device is operated via panel buttons.

Connectivity and power
Bluetooth transmission enables real-time data transfer to smart devices such as mobile phones, PCs and tablets. The unit is battery powered and rechargeable; charging options include wire and optional wireless charging.

Technical Features

• Simultaneous monitoring of SpO2, pulse rate, heart rate, RESP, NIBP and temperature
• One-button design for easy operation
• Compact and lightweight, portable
• Bluetooth 5.0 for data transmission
• Wired and wireless charging (optional)
• Battery: one 3.7V (1800mAh) lithium battery
• Free app available: Berry Smart Health

Caractéristiques / spécifications techniques

• Modèle / série: PM6100 Series
• Affichage: Couleur TFT-LCD
• Paramètres mesurés: ECG, NIBP, SpO2, PR, RESP, TEMP
• Alimentation: Batterie rechargeable 3.7V, 1800mAh
• Connectivité: Bluetooth 5.0 (transmission en temps réel)
• Chargement: Câble et charge sans fil (en option)
• Conception: Portable, petite taille, poids léger
• Contrôle: Boutons panneau (interface utilisateur simple)
