Features:
- Square tube steel structure, powder-coated
- Removable, soft cushion for patient comfort, easy to clean
- High-power DC motor, 24V 250W, stable stair climbing
- Adjustable climbing speeds, rotary knob on control box
- Large capacity Li-battery with long working time
- Battery status display via LCD on control box
- Equipped with cross safety belts
- Easy to fold, LED light for dark staircases
- Hexagonal wheels Ø8’ rear, Ø4’ front
Technical Specifications:

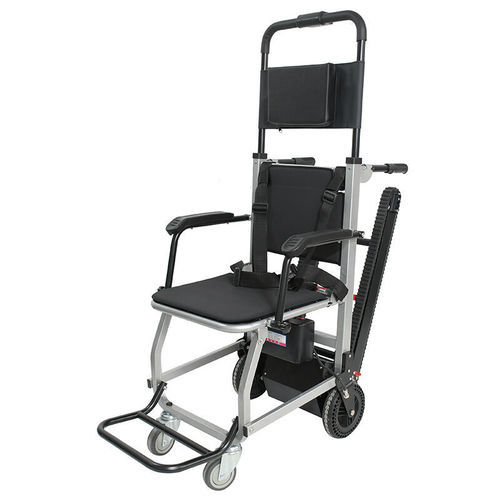

- Model: YHR-LD09-Steel
- Application: Move a patient or loved one up and down stairs
- Material: Square tube steel structure, powder-coated
- Seat: Aluminum plate & sponge cushion
- Load weight: Max. 200 kg (440 lbs)
- Color: Yellow/Green/Red/Black/Blue/White/Grey
- Wheels: Front Ø4" rear Ø8"
- Battery: 24V 10Ah lithium-ion battery
- Motor: 24V 250W / adjustable speed
- Speed regulation: About 20–45 steps/min
- Working time: Up to 1.5-2 hours at full charge
- Dimensions: 109×57×103 cm–119–136–153 cm
- Folded: 103×57×32 cm
- Packing: 109×64.5×35.5 cm 1 set/plywood case
- N.W./G.W.: 37.9 kg/49.9 kg
