Veterinärlaser für Veterinärchirurgie Thulase Vet

DiodenHolmiumTischgerät

Overview

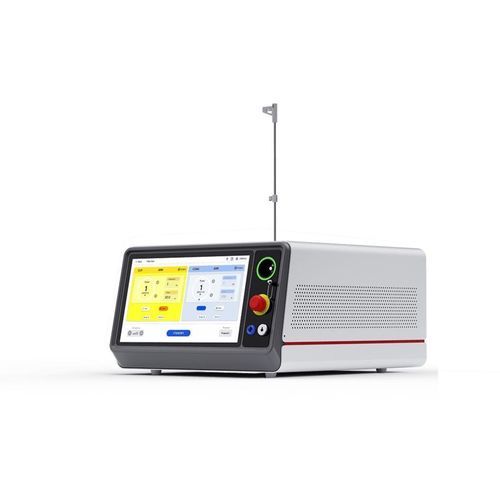

Portable Veterinary Thulium Laser Lithotripsy System
Precision soft tissue surgery
Veterinary lithotripsy procedures
Advanced clinical surgical use

Why Thulium Laser
Advanced Technology for Veterinary Surgery. Thulium laser technology provides excellent balance between cutting precision and coagulation, enabling advanced veterinary surgical applications with minimal thermal impact. This platform is designed for partners targeting high-end veterinary markets.

Distributor Advantages

• Premium product positioning
• Strong differentiation from standard diode systems
• Higher margin potential
• Suitable for advanced and emerging markets

Fiber
Six different fiber sizes are available to accommodate various clinical applications.

• Fiber Size (Core Diameter): 200 μm
• 272 μm
• 365 μm
• 550 μm
• 800 μm
• 1000 μm

Technical table
Parameter | ThulioDual Vet (Thu-Vet-300) | Thu-Vet-400 | Thu-Vet-600
Order Model | Thu-Vet-300 | Thu-Vet-400 | Thu-Vet-600
Wavelength | 1940nm±5nm | 1940nm±5nm | 1940nm±5nm
Maximum Power | 300W | 400W | 600W
Pilot Beam | 532nm / 635nm | 532nm / 635nm | 532nm / 635nm
Operation Mode | CW/Pulse | CW/Pulse | CW/Pulse
Energy/Pulse | Up to 3J | Up to 4J | Up to 4J
Repetition Rate | 1-3000hz | 1-4000hz | 1-6000hz
Dimensions | 409(W)*518(L)*254(H) mm | 409(W)*518(L)*254(H) mm | 450(W)*536(L)*271(H) mm
Weight | 30Kg | 33Kg | 42Kg

Additional notes
Designed for stone powdering (lithotripsy) and precision soft tissue surgery in veterinary applications. Multiple fiber core diameters allow adaptation to various clinical needs.

Caractéristiques / spécifications techniques

• Product family: ThulioDual Vet (Thu-Vet series)
• Wavelength: 1940 nm ± 5 nm
• Available maximum power: 300 W, 400 W, 600 W
• Pilot beam options: 532 nm and 635 nm
• Operation modes: Continuous Wave (CW) and Pulse
• Energy per pulse: up to 3 J (300 model), up to 4 J (400 / 600 models)
• Repetition rate ranges: 1–3000 Hz (300), 1–4000 Hz (400), 1–6000 Hz (600)
• Dimensions (examples by model): 409×518×254 mm (300/400), 450×536×271 mm (600)
• Weight (examples by model): 30 kg (300), 33 kg (400), 42 kg (600)
• Fiber core diameters available: 200 μm, 272 μm, 365 μm, 550 μm, 800 μm, 1000 μm
• Clinical use: veterinary lithotripsy, precision soft tissue surgery, advanced clinical surgical applications
