Biostimulationslaser für Veterinärmedizin / für Pferde GBOX PLUS

für Pferdetragbarzur Rehabilitation

Overview
Class 4 Laser Therapy for equine athletes: non-invasive treatment to accelerate healing, reduce inflammation, manage pain and support preventive care. Suitable for post-race recovery, tendon injuries, arthritis, pain management and preventive protocols.

Key Benefits

• Non-invasive & painless treatment avoiding injections or surgery
• Accelerates healing and enhances performance by reducing inflammation and promoting tissue repair
• Reduces pain and improves flexibility to help horses regain competitive condition faster
• Short treatment time with fast results (typical sessions 5–15 minutes)

Recommended Use Cases

• Post-race recovery
• Tendon injuries
• Arthritis
• Pain management
• Preventive care

Featured Device (example deployment)

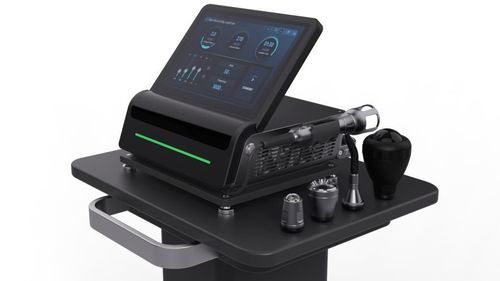

GBOX PLUS is presented as a powerful, portable Class 4 laser platform used in racehorse facilities, veterinary clinics and equine care centers. It supports multi-wavelength therapy for deep tissue penetration and offers smart handpiece ergonomics for ease of operation.

Highlighted Features of GBOX PLUS

• High-power Class 4 laser technology
• Multi-wavelength capability for deep tissue penetration
• Smart handpiece for easy operation
• Customizable treatment protocols and patient history data storage
• Portable with shoulder sling and changeable battery

Therapy / Mode Highlights

• 4/5 wavelength combinations available (1064 nm, 980 nm, 915 nm, 810 nm, 635 nm)
• Intense Superpulse (ISP) mode — variable duty cycle pulsing for deeper stimulation while reducing burn risk
• Continuous Wave (CW) and ISP operation modes with high peak and continuous powers

Handpiece Optics (examples)

• 30 mm open zoom lens
• 30 mm curved contact lens
• 10 mm curved contact lens
• 5 mm TMJ lens
• 30 mm 360° rolling large massage ball lens

Clinical Outcomes & Evidence (summarized)
Case study highlights and testimonials indicate faster tissue healing (example: significant tissue healing within weeks) and reduced recovery times for treated horses when using Class 4 laser protocols. User reports include reduced recovery time and improved performance following regular sessions.

caractéristiques / spécifications techniques

• Wavelength combinations (nm): 1064 nm + 980 nm + 915 nm + 810 nm + 635 nm
• Frequencies: 0.2 to 20,000 Hz & ISP
• Diode: High powered solid-state diode module
• Intense Superpulse Peak (ISP): 55W + 2000 mW (635 nm)
• Continuous Wave Power (CW): 40W + 2000 mW (635 nm)
• Wavelength selectability: Any combinations with independent control
• Laser cable: fibers of 400 μm and 600 μm with SMA905 connector
• Hand piece optics: 30 mm open zoom, 30 mm curved contact, 10 mm curved contact, 5 mm TMJ, 30 mm 360° rolling massage ball
• Folding screen: Yes (10.1 inch HD touch screen, Android platform)
• Technology platform: 10.1 inch HD touch screen; Android; Wi‑Fi enabled software updates
• Battery: Changeable battery; full power ~1 hour; low power up to ~4 hours; long-term stationary mode available
• Weight / Dimensions: Hand unit example dimensions 265(W) * 270(L) * 120(H) mm; 4.2 kg without battery, 4.8 kg with battery
• Customizable protocols: Yes; unlimited patient history data: Yes
• Clinical support and selectable parameters (BMI, skin tone, pain scale): Yes
