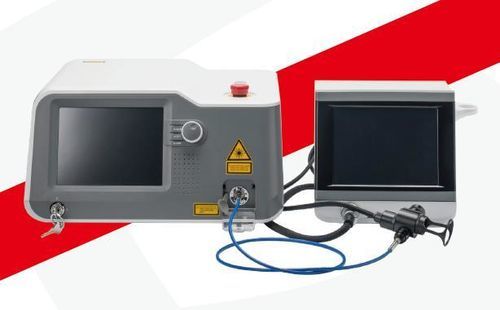

Laser für vaskuläre Läsionen VELASII-8G

für Pigmentläsionenzur NarbenbehandlungLithiumtriborat

Introduction
Use high power semiconductor at 808nm to “pump” in an optical sense a crystal that produces light of a wavelength of 1064 nm. This light is then cast upon a duplicating crystal (LBO (triborate lithium)) to halve the wavelength of 1064 nm and obtain green light of 532 nm. This system of wavelength splitting allows the operator to control the emission of green light using very short pulses.

Powerful and effective

• Available peak power options: 3 W / 4 W / 5 W / 8 W
• Very short, intense pulses
• Effective treatments with protection of the epidermis
• Very stable and reliable technology with long lifetime

Transportable and economic

• Easy-to-use design with intuitive menu
• Compact device with stable technology
• Transportation case provided for device and accessories
• Plug & play technology: no technician needed
• Low operating costs

Applications
Vascular Lesions

• Spider Veins
• Telangiectasia
• Neovascularization
• Rosacea
• Venous Lake
• Port-wine stain (PWS)
• Senile, Stellate and Cherry Angiomas

Pigmented Lesions

• Lentigines
• Dermatosis Papulosis Nigra
• Freckles
• Hyperkeratotic Lesions
• Civatte Poikiloderma
• Red Stretch Marks

Cutaneous Lesions

• Scars
• Verrucas
• Keratoses
• Inflammatory Acne

Caractéristiques / spécifications techniques

• Optical pumping: high-power 808 nm semiconductor pump
• Primary output path: 1064 nm crystal emission with LBO frequency doubling to 532 nm (green)
• Nonlinear crystal: LBO (triborate lithium) for wavelength conversion
• Peak power options: 3 W, 4 W, 5 W, 8 W
• Pulse type: very short, intense pulses (designed for epidermis protection)
• Device attributes: compact, transportable, comes with transportation case
• User interface: intuitive menu, plug & play operation (no technician required)
• Reliability: designed for stability and long lifetime
• Operating cost: low operating costs
