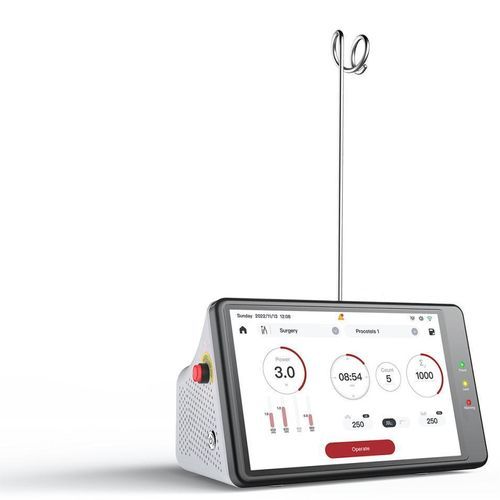

OP-Laser CHEESE PLUS

Dentalfür dentale Biostimulationfür physikalische Biostimulation

Présentation
The CHEESE PLUS is a mini multi-wavelength medical laser system combining multiple visible and infrared wavelengths for clinical applications. The system integrates four wavelengths (450nm, 650/635nm, 810nm, 1064nm) in configurable model variants and is FDA cleared (FDA 510(k) Number K230047).

Applications principales

• Dentistry: Soft tissue surgery (excision, incision), root canal treatment, pulpitis treatment, bone tissue surgery; reduced bleeding and faster healing.
• Therapy / Rehabilitation & Pain Management: Biostimulation, pain relief, inflammation reduction, musculoskeletal and tendon injuries, deep tissue therapy for fractures and spinal disorders.
• Veterinary: Rehabilitation, pain management, soft tissue and minimally invasive procedures, equine rehabilitation and sports medicine.

Wavelengths & usages (résumé)

• 450nm: Soft tissue surgeries (excision, incision), reduces bleeding and tissue damage.
• 635nm / 650nm (pilot/visible): Biostimulation, pain treatment, promotes healing and tissue regeneration.
• 810nm: Deep tissue surgery and biostimulation; penetrates into bone and gums for dental and deep-tissue procedures.
• 980nm / 980–1064nm: Strong tissue penetration for deep tissue injury treatments, fractures, spinal disorders and neurological therapy potentials.
• 1064nm: Near-infrared for deep muscle, bone and joint treatments; effective for lumbar strain, knee pain and arthritis.

Table — Technical Specifications (Dentistry)
Parameter | CHEESE PLUS (CP18G) | CHEESE PLUS (CP13G) | CHEESE PLUS (CP23G)
Order Model | CP18G | CP13G | CP23G
Wavelength | 635nm + 445nm + 810nm | 635nm + 445nm + 1064nm | 635nm + 445nm + 810nm + 1064nm
Maximum Power | 200mW + 3W + 15W | 200mW + 3W + 10W | 500mW + 3W + 10W + 10W
Pilot Beam | 532nm | 532nm | 532nm
Operation Mode | CW, Repeat Pulse | CW, Repeat Pulse | CW, Repeat Pulse
Pulse Duration | 10μs – 3s | 10μs – 3s | 10μs – 3s
Repetition Rate | 0.2Hz – 20KHz | 0.2Hz – 20KHz | 0.2Hz – 20KHz

Table — Technical Specifications (Therapy)
Parameter | CHEESE PLUS (CP20RT) | CHEESE PLUS (CP20DRT)
Order Model | CP20RT | CP20DRT
Wavelength | 635nm + 980nm | 635nm + 810nm + 980nm
Maximum Power | 500mW + 20W | 500mW + 10W + 10W
Pilot Beam | 635nm | 635nm
Operation Mode | CW, Repeat Pulse, IPS | CW, Repeat Pulse, IPS
Pulse Duration | 10μs – 3s | 10μs – 3s
Repetition Rate | 0.2Hz – 20KHz | 0.2Hz – 20KHz

Table — Technical Specifications (Veterinary)
Parameter | CHEESE PLUS (CP20RV) | CHEESE PLUS (CP20RV) | CHEESE PLUS (CP25RV)
Order Model | CP20RV | CP20RV | CP25RV
Wavelength | 635nm + 980nm | 635nm + 810nm + 980nm | 635nm + 450nm + 810nm + 980nm
Maximum Power | 500mW + 20W | 500mW + 10W + 10W | 500mW + 5W + 10W + 10W
Pilot Beam | 635nm | 635nm | 635nm
Operation Mode | CW, Repeat Pulse, IPS | CW, Repeat Pulse, IPS | CW, Repeat Pulse, IPS
Pulse Duration | 10μs – 3s | 10μs – 3s | 10μs – 3s
Repetition Rate | 0.2Hz – 20KHz | 0.2Hz – 20KHz | 0.2Hz – 20KHz

Remarques produit
The system is available in multiple ordered models/configurations (see model table). Operation modes include CW (continuous wave), repeat pulse and intelligent pulse sequences (IPS) depending on model. Pilot beam wavelengths cited vary by model (commonly 532nm or 635nm) for aiming. FDA 510(k) clearance K230047 is indicated for the product on the page.

Caractéristiques / spécifications techniques

• Series / Commercial name: CHEESE Plus
• Available wavelengths (examples by model): 445nm, 450nm, 635/650nm, 810nm, 980nm, 1064nm
• Order models (examples): CP18G, CP13G, CP23G, CP20RT, CP20DRT, CP20RV, CP25RV
• Maximum power examples: ranges combining mW and W depending on wavelength and model (e.g. 200mW + 3W + 15W; 500mW + 3W + 10W + 10W; 500mW + 20W)
• Pilot beam: typically 532nm or 635nm (model-dependent)
• Operation modes: CW, Repeat Pulse, IPS (model-dependent)
• Pulse duration range: 10 μs – 3 s
• Repetition rate range: 0.2 Hz – 20 KHz
• FDA 510(k) Number: K230047 (as stated on the product page)
