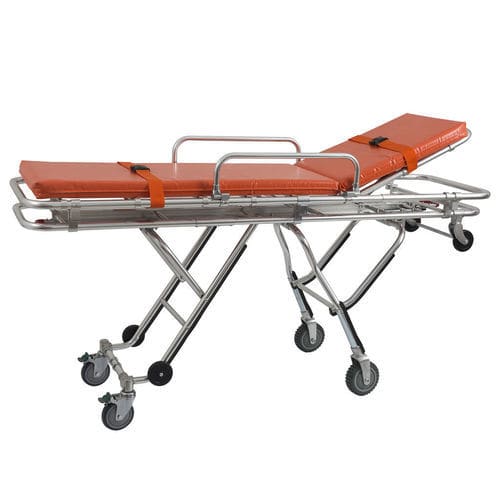

Fahrtrage für Krankenwagen YHR-A4

mechanischzusammenklappbarhöhenverstellbar

1. The main material is high-strength aluminum alloy, which is hardened and surface-treated. 2. The mattress is made of wear-resistant meshware with a thickness of 6 cm and single seam, flame-retardant and waterproof. 3. Equipped with adjustable aluminum alloy side rails and two safety belts. 4. Equipped with adjustable two-stage IV pole, maximum adjustable length is 75 cm. 5. Intelligent structure and adopts the mechanical design of foldable legs, which conveniently allows various posture changes; the height of 4 levels is adjustable, and the folding mechanism of the legs can be controlled by left and right handles, requiring only one medical professional to push the stretcher into the ambulance. 6. The YHR-A4 type upper frame is not removable, the YHR-A5 type upper frame is removable. 7. The loading height is 64 cm. Wheel size: φ125 mm. Technical Data - Name: Ambulance Stretcher - Model: YHR-A4 - Material: Aluminum Alloy - High Position L*W*H: 196×55×98 cm - Low Position L*W*H: 196×55×34 cm - Backrest: 0-75° - Load Capacity: Max. 160 kg (350 lbs) - N.W.: 38.2 kg - Packing: 198×62×38 cm; 1 pc/CTN - G.W.: 44 kg Key Features / Technical Specifications: - Main material: High-strength aluminum alloy, hardened and surface-treated - Mattress: 6 cm thick, wear-resistant, flame-retardant, waterproof - Adjustable aluminum alloy side rails and two safety belts - Adjustable two-stage IV pole (max 75 cm) - Foldable leg mechanism, 4 adjustable height levels, single-person operation - YHR-A4 upper frame not removable, YHR-A5 removable - Loading height: 64 cm - Wheel size: φ125 mm - High position dimensions: 196×55×98 cm - Low position dimensions: 196×55×34 cm - Backrest: 0-75° - Max load: 160 kg (350 lbs) - Net weight: 38.2 kg - Gross weight: 44 kg - Packing: 198×62×38 cm; 1 pc/CTN
