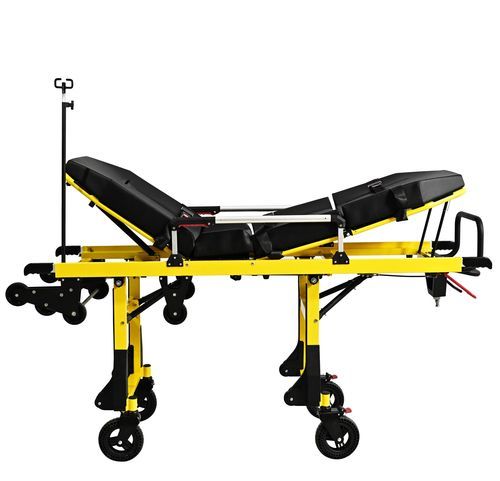

Transport-Fahrtrage YHR-A12

Notfallmanuellzusammenklappbar

Overview - The main material is high-strength aluminum alloy, which is hardened and surface-treated. - The overall height of the stretcher can be adjusted in ≥3 stages, simplifying the performance of CPR. - The front leg height is adjustable in 2 stages, the rear leg height in 3 stages. - The backrest is adjusted by a gas spring, backrest angle adjustment: 0–88°; the legs are mechanically supported to change position, 0° or 15°. - There are three wheels in the loading area, which increases the loading height range. - The side rail is made of aluminum and plastic, the stretcher is equipped with two safety belts. - The front swivel castors are equipped with an elastic lock, which can be locked for straight driving or universal steering; rear swivel castor with brake. - Only one medical professional is required to push the stretcher into the ambulance. - The lock is controlled by handles, the stretcher must be secured with a device when loading into the ambulance! - Loading height: 580-690 mm; Wheel size: Φ200 mm. - The stretcher mattress is made of PVC material with a concave shape, thickness: 10 cm. The mat is waterproof and easy to clean due to high-frequency welding seams. - It is equipped with a two-stage IV pole and a device for securing the stretcher. - Optional accessory: oxygen cylinder holder. Technical Specifications - Name: Ambulance Stretcher - Model: YHR-A12 - Function: Overall height adjustable - Four swivel castors; front wheels can be locked in desired direction - Height adjustable for CPR - Three wheel height levels: 585 mm, 640 mm, 685 mm - Adjustable structural side rail, height: 17.5 cm - Two safety belts - Three-point simultaneous locking device - Four retractable handles at both ends - Material: High-quality aluminum alloy and surface treatment - Mattress: U-shaped waterproof premium mattress, thickness 10 cm - Wheels: φ200 mm - High Position: 197x57.5x101 cm - Low Position: 197x57.5x47 cm - Backrest Angle: 0-90° - Leg Angle: 0° or 15° - N.W.: 51.5 kg - Load Capacity: Max. 200 kg (440 lbs) - Packing: 207x60x47 cm; 1 set/CTN - G.W.: 62 kg
