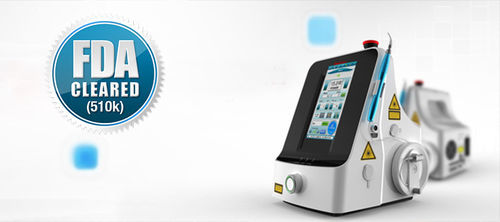

OP-Laser Gbox

DiodenTischgerät

Overview
The new Gbox portable surgery diode laser system is a compact, portable multi-wavelength medical diode laser platform for surgical, aesthetic and therapeutic applications. Small sized metal carry case with coded lock; peak output power up to 30W. Available wavelengths for choice: 450nm, 532nm, 810nm, 980nm, 1064nm, 1470nm and 1940nm. The system supports continuous and pulsed modes and can be used with contact or non-contact handpieces.

Applications & Clinical Use
Versatile system with accessories to extend clinical applications including dentistry, endovenous laser treatment (EVLT), ENT, PLDD, lipolysis, DEEP Tissue Therapy, veterinary use and other surgical/therapy specialties. The system is presented as FDA-approved in its product text.

Accessories & Handpieces

• Flexible fiber and fiber holders (two kinds) for easy cleaning and convenient use; typical fiber length example: 3 meters.
• Various handpieces with multiple shapes and lengths (including ENT handpieces: set of 7 pieces for different applications).
• Micro-endoscope compatibility.
• PM3 therapy handpiece for laser therapy to relieve pain, accelerate healing and decrease inflammation.
• Lipolysis handpiece with 5 cannula lengths; cannulae re-sterilizable up to ~40 times each.

User interface & Features

• User-friendly interface with advanced software and presetting protocols that can be manually customized (rename protocols, modify parameters, save settings).
• 8-inch touch screen display.
• Output power calibration at the end of fibers; built-in power meter available in software for power testing.
• Adjustable aiming beam (pilot light), background light and sound.
• 20 KHz top-pulsation mode for quick and tissue-protecting performance.
• Highly integrated, modular and service-friendly internal design; designed for easy maintenance and low cost.
• Full set of standard accessories supplied for direct clinical use.

Design & Portability
Compact body case dimensions: 245(L) * 215(W) * 315(H) mm; weight approximately 5 kg. The whole system can be packed into a metal portable carry case with coded lock for easy transport.

Notes on Supply & Use
Comprehensive range of application accessories provided; distributor pricing and accessory options mentioned. The product text indicates the system is intended to be supplied with full standard accessories so end users can work with the laser system directly.

Caractéristiques / spécifications techniques

• Model: Gbox
• Brand: GIGAAMEDICAL
• Peak output power: up to 30 W
• Available wavelengths: 450 nm, 532 nm, 810 nm, 980 nm, 1064 nm, 1470 nm, 1940 nm
• Operating modes: continuous and pulsed
• Handpiece types: contact and non-contact handpieces; multiple shapes and lengths
• Fiber: flexible fiber (example length: 3 m); fiber holders included
• Power calibration: output power calibration at fiber end; built-in power meter (software)
• Pulsation: up to 20 kHz top-pulsation
• Display: 8 inch touch screen
• Dimensions (approx.): 245 x 215 x 315 mm (L x W x H)
• Weight (approx.): 5 kg
• Portability: metal portable carry case with coded lock
• Disposable/reusable accessories: lipolysis cannulae re-sterilizable up to ~40 times
• Additional accessories: PM3 therapy handpiece, ENT handpieces (7-piece set), micro-endoscope
• Regulatory note: product text indicates FDA approval for the laser systems (as stated on the page)
