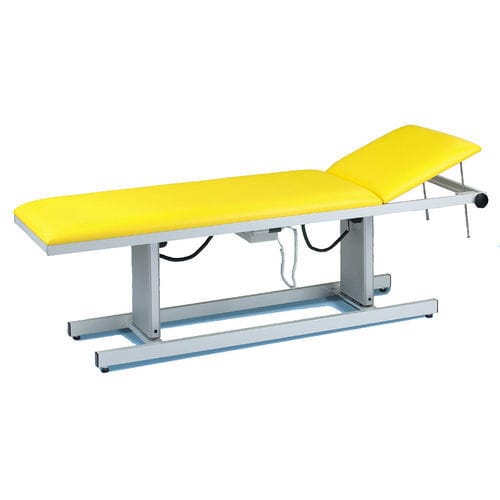

Elektrische Untersuchungsliege H-U 1065/EE 850

Anti-TrendelenburgTrendelenburgmit verstellbarer Rückenlehne

The AGA-DUO-LIFT examination tables offer another variant of the electric adjustable examination tables from AGA Sanitätsartikel. These are equipped with electrice height adjustment and tilt adjustment as standard. They are controlled by a hand switch with 6 buttons, which is multitasking capable (allows simultaneous operation of the height and tilt adjustment). With regard to the power supply, a floor socket in the area of the examination table is also desirable for these examination tables. The AGA-DUO-LIFT examination tables are available in three frame finishes (lacquered, chrome-plated and stainless steel) as well as two widths. Features The 2 sections examination tables are the base models of all our table series in terms of upholstery, structure, dimensions and drilling pattern. The two lifting columns (low-voltage electric drives), which are characterized by their smooth running, are made of anodized light metal. They are controlled by a transformer and operated by a hand switch. Motor connection values: 230V, 50/60Hz, 6,0A, 240W, IPX6, v=16mm/s, 2 x 1,000N. The hand switch with six buttons allows simultaneous height and tilt adjustment (multitasking). When both motorized adjustment paths are fully utilized, a Trendelenburg and Antitrendelenburg position of 11° each can be achieved. Stability and robustness are achieved by the gusset plates in the frame corners. High stability is ensured by the wide extension of the base frame, which is equipped with levelling feet. The headrest can be adjusted continuously up to +40° and locked in place by a handle with a clamping rod mechanism. The standard version includes: Floor frame with levelling feet.
