Temperatur-Datenlogger DST centi-TD

Druckfür Tiefenanwendungfür die Tierforschung

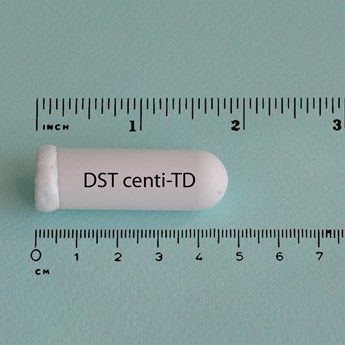

Product Details High performing data storage tag with long battery life and high pressure tolerance DST centi-TD is a long life and reliable tag with temperature and depth sensors, well suited for long term behaviour and migration studies of fish and marine animals. This long-life DST data storage tag can store up to 524,000 measurements in total with time stamp for each measurement, whilst the batteries storing at 10 minute interval can last up to 9 years. The size is 46 mm x 15 mm and it weighs 19 grams. It is possible to set the tag to shift between different recording intervals within the measuring period. Application The DST centi-TD is designed as a data storage tag for migration, dive and feeding behavioral studies of fish and marine animals. It enables scientists to gain valuable information on migration routes and behavioural patterns over a long period of time. The tag can be implanted or attached externally. Depth sensors from shallow to deep water The tag can be calibrated to 3,000 meters, with tolerance up to 3,500 meters. Shallow water is also available, with a wide variety of ranges: 50m, 100m, 270m, 800m, 1500m, 3000m. Fish implantation or external attachment The data logger is designed as an implantable tag and can be implanted in the abdominal cavity. It can also be attached externally on a fish or marine animal using a tag holder kit, ensuring easier and safer attachment. User defined text on housing for recapture purposes For tag and release of animals into the wild the tags can have a customized text on the housing, for recapture purposes. It is important to have the return information when the tags are used on commercially fished species, so that fishermen can return a tag with valuable data to the scientist. Normally there is a reward for return. Spaghetti tag for spotting fish When DST is implanted in fish it is possible to have a yellow plastic tube, or spaghetti tag, attached to the DST. The tube would stick to the exterior of fish, to make it easier for fishermen to spot the tagged fish. Using the logger Simple in Use, From Setup to Data Retrieval: The data storage tag and the accompanying items are designed for ease of use throughout the research process, from setting up the tag, attaching it, to retrieving and analysing the data. The tag recorder is supported by the SeaStar software and a Communication Box which have to be purchased with the first order. Programming the Tag: To set the logger for starting measurements it is placed into the Communication Box that connects with a USB cable to a PC computer. In the SeaStar software, the user sets the start time, start date and sampling interval before starting the tag for measuring. The tag synchronizes its internal clock with the date & time on the computer being used. Single or multiple intervals: There are two modes for sampling, either at a single interval throughout the period or multiple intervals. When choosing multiple intervals programming it is possible to define up to seven different intervals and number of measurements for each interval. Shifting between wide and narrow intervals can help in extending the measuring period due to memory limitation and have more frequent measurements during certain time periods, for example spawning periods. Memory and Battery Life Calculations: The software automatically calculates when memory fills based on certain interval settings, making it easier for the user to decide how to program the tag. Estimation on battery consumption during that time period is also calculated. Uploading the Data: After fish recapture, the tag is inserted into the communication box and the recorded data is uploaded to the software. The results are displayed both in graphic and tabular form and the data can be exported to other programs. The time series data shows each measurement with its own time stamp. Long battery life: After data retrieval the data storage tag can be re-used, as long as the batteries inside last. Battery life estimation is always reported upon connection with the tag. Due to the low energy consumption circuitry design the battery life can be several years, depending on usage and sampling interval used. Accessories Communication box: Serves as an interface between the DST and a PC computer. It is used for connecting to the DST, when starting the logger and retrieving data. DST is inserted into the hole of the box for wireless communications. SeaStar software: Software for Windows is needed to operate the DST. Data is displayed in a graph and table. The time series data file can be opened in other programs. An installation product key is provided when ordering the software, for online downloading. Fish and Marine Animal Tag Holder Kits for External Tagging: Plate holder kit consists of wire fasteners, a plastic plate for holding the tag, a plastic plate on the opposite side, and silicon pads for external attachment on fish and other subjects. The plastic plates have smooth edges, specially designed for external attachment on animals. Silicone pads underneath give further comfort to the animal’s skin. Star-Oddi can also provide needles, for threading wires through the fish. The plate holder kit is available for the centi and milli sized loggers. Capsule holder kit is a plastic capsule that has 2 mm holes on each end. The capsule has holes on each end, ensuring water flow to the sensors. In addition to the capsule the kit comes with a wire harness, plastic plate and two silicone pads for placing under the capsule to prevent descaling and the plastic plate. The capsule holder kit is available for all logger sizes: centi, milli and micro. Floating Device for DST: Star-Oddi offers a floating device for the data storage tags. They can be used both for internal and external tagging of fish and marine animals. For internal tagging the cylinders can be coated with biocompatible material. They can also be painted with bright colours for more visibility (non biocompatible). Technical Specifications Sensors: Temperature and pressure (depth) Size (Diameter x Length): 15mm x 46mm*** Maximum Diameter: 18mm at the closure end Housing Material: Biocompatible alumina (Ceramic) Weight (in Air/in Water): 19g/12g Data Resolution: 12 bits Temperature Range: -2°C to +40°C (28°F to 104°F) Temperature Resolution: 0.032°C (0.058°F) Temperature Accuracy: +/-0.1°C (0.18°F) Temperature Response Time: Time constant (63%) reached in 20 sec. Standard Depth Ranges: 50m, 100m, 270m, 800m, 1500m, 3000m Depth Resolution: 0.03% of selected range Depth Accuracy: +/- 1% of selected range Depth Response Time: Immediate Memory Type: Non-volatile EEPROM Memory Capacity: 174,000 measurements in total* Memory Increase Option: 524,068 measurements in total* Measurement Interval: User specified in second(s) minute(s), or hour(s) Minimum Measurement Interval: 0.1 second Burst Measuring Option: 10 Hz Multiple Intervals Option: Up to 7 different intervals Measurement Options (Primary/Secondary): Temperature as primary, pressure/depth as primary Data Retention: 25 years Clock: Real time clock. Accuracy +/-1 min/month. Communications: Communication Box, wireless transmission when DST sits in the box. Connection to PC: USB cable. Attachment Hole: 0.9 mm (diameter) Battery Life: 9 years** Replaceable Battery: No * Total memory is divided between the two sensors. ** For sampling interval of 10 minutes; temperature and pressure recorded simultaneously.*** Length for DST centi-TD 1500m and 3000m is 50mmWarranty: 12 months.Specifications may change without notice.
