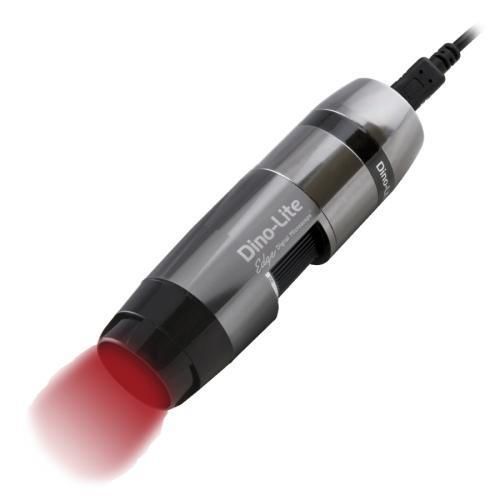

Digitales Videomikroskop AM4517MT-DFRW

biologischLaborfür Biowissenschaften

Beschreibung
Erfassen Sie Deep‑Red- und nahes Infrarot (NIR) Fluoreszenz mit dem hochsensitiven digitalen Mikroskop AM4517MT-DFRW. Mit einem Vergrößerungsbereich von 20x bis 220x, 620 nm Anregungslicht und einem Emissionsfilter 655 nm ~ 950 nm detektiert es Signale von Sonden wie CY5, Alexa Fluor 647 und Qdot 655. Automatic Magnification Readout (AMR) erleichtert Messungen und Dokumentation.

Hauptmerkmale

• 1.3 Megapixel CMOS-Sensor (1280x960)
• Hohe Sensitivität für deep-red / NIR Fluoreszenz
• Vergrößerungsbereich: 20x–220x
• Umschaltbare weiße LED-Beleuchtung
• Automatic Magnification Readout (AMR)
• Metallgehäuse

Optical Data Table
Vergrößerung | Arbeitsabstand (mm) | Sichtfeld (x) (mm) | Sichtfeld (y) (mm) | Schärfentiefe (mm)
20x | 60.4 | 19.53 | 14.65 | 6.34
30x | 33.7 | 13.02 | 9.77 | 3.03
40x | 21.1 | 9.77 | 7.33 | 1.82
50x | 14.1 | 7.81 | 5.86 | 1.24
60x | 9.9 | 6.51 | 4.88 | 0.91
70x | 7.3 | 5.58 | 4.19 | 0.71
80x | 5.7 | 4.88 | 3.66 | 0.57
90x | 4.8 | 4.34 | 3.26 | 0.47
100x | 4.3 | 3.91 | 2.93 | 0.40
110x | 4.2 | 3.55 | 2.66 | 0.35
120x | 4.3 | 3.26 | 2.44 | 0.31
130x | 4.7 | 3.01 | 2.25 | 0.27
140x | 5.2 | 2.79 | 2.09 | 0.24
150x | 5.8 | 2.60 | 1.95 | 0.22
160x | 6.5 | 2.44 | 1.83 | 0.20
170x | 7.3 | 2.30 | 1.72 | 0.18
180x | 8.2 | 2.17 | 1.63 | 0.17
190x | 9.1 | 2.06 | 1.54 | 0.16
200x | 10.1 | 1.95 | 1.47 | 0.15
210x | 11.1 | 1.86 | 1.40 | 0.14
220x | 12.1 | 1.78 | 1.33 | 0.13

Spezifikationen
Lighting

• Light / LED type: 620 nm excitation + white
• Number of LEDs: 7 FL + 1 White
• LED on/off switchable: Yes
• Infrared filter: No
• Diffuser available: No
• Emission filter: 655 nm ~ 950 nm
• Polarizer: No
• Fluorophores: CY5, Alexa Fluor 647, Qdot 655

Optics

• Magnification: 20x ~ 220x
• Macro zoom: No
• Working distance: Standard (siehe optische Tabelle)
• Lens type: Glass with anti-reflection coating

Sensor

• Sensor type: CMOS
• Resolution: 1.3 Megapixel (1280x960)
• Maximum frame rate: 30 fps

Compatibility

• Interface: USB 2.0
• Operating system: Windows 7, 8, 10 & 11; MacOS 10.9 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image formats (MacOS): JPEG, PNG
• Supported video formats (MacOS): MOV

Housing & Mechanical

• Housing material: Metal housing
• Magnification lock: Yes
• Dimensions: 104 mm (H) x 32 mm (D)
• Weight: 90 g
• Cable length: 1.8 m

Features

• Special feature: Automatic Magnification Readout (AMR)
• Measurement: Yes
• Calibration: Yes
• Microtouch sensor: Yes

Information

• Package contents: Microscope, carry pouch, calibration target, user manual, N3C-C (Close Cap), N3C-EB (Extended Open Black Cap), N3C-LB (Black Long Cap), N3C-OB (Black Open Cap)
• Warranty information: 2 years European warranty
• Regulatory approval: CE, FCC, ROHS
• Price range: €1100.00 - €1300.00

Technische Daten

• Model: AM4517MT-DFRW
• Brand: Dino-Lite
• Magnification: 20x - 220x
• Sensor: 1.3 MP CMOS (1280x960), 30 fps
• Illumination: 620 nm excitation (7 FL) + 1 White LED; switchable
• Emission filter range: 655 nm ~ 950 nm
• Fluorophores detected: CY5 / Y5, Alexa Fluor 647, Qdot 655
• Interface: USB 2.0
• OS compatibility: Windows 7/8/10/11, MacOS 10.9+
• Housing: Metal; dimensions 104 x 32 mm; weight 90 g; cable 1.8 m
• Special functions: AMR, measurement, calibration, microtouch sensor
